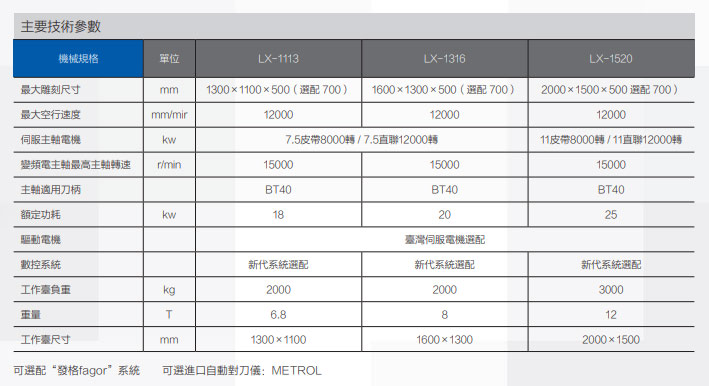

机械规格 Mechanical specifications |
单位 Unit |
LX-1113 |
|
雕刻尺寸 Maximum engraving size |
mm |
≤1300x1100x500(选配700) ≤1300X1100X500(Select 700) |
|
空行速度 Maximum blank speed |
mm/mir |
12000 |
|
伺服主轴电机 Servo spindle motor |
kw |
7.5 belt 8000 rpm /7.5 direct 12000 rpm |
|
变频电主轴主轴转速 Frequency electric spindle maximum spindle speed |
r/min |
≤15000 |
|
主轴适用刀柄Spindle handle |
|
BT40 |
|
额定功耗Rated power |
kw |
18 |
|
驱动电机 Drive motor |
|
日本/台湾伺服电机选配 Japan / Taiwan servo motor selection |
|
数控系统 CNC system |
|
新代系统选配 Syntec system selection |
|
工作台负重 Table bearing weight |
kg |
2000 |
|
重量Weight |
T |
6.8 |
|
工作台尺寸 Table size (length x width) |
mm |
1300x1100 |
