主要技术参数Main technical parameters |
|||
|
项目 Project |
单位Unit |
LX-1580 |

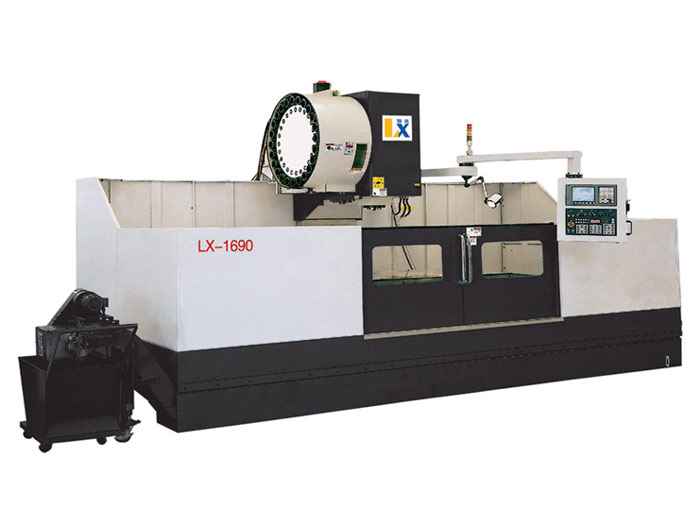

LX-1690 |
|
工作台Table |
|||
|
工作台尺寸Table size (length x width) |
mm |
800x1700 |
900x1800 |
|
T型槽（宽x槽数） T- slot (width x slot number) |
mm |
22x5 |
22x5 |
|
载重 maximum loading |
kg |
≤1500 |
≤1600 |
|
工作台面至地面距离 Distance from table surface to ground |
mm |
1000 |
1050 |
|
行程 Travel |
|||
|
X轴行程Longitudinal travel |
mm |
1500 |
1600 |
|
Y轴行程 Lateral travel |
mm |
800 |
900 |
|
Z轴行程 Vertical travel |
mm |
700 |
皮带头680/齿轮头 650 Belt head680/ gear head650 |
|
主轴鼻端至工作台面距离 Distance from spindle nose to table surface |
mm |
170-870 |
皮带头160-840/齿轮头350-1000 Belt head160-840/ gear head350-1000 |
|
主轴中心距至机柱滑道距离 Distance from spindle center to column slide |
mm |
800 |
950 |
|
主轴 Spindle |
|||
|
主轴锥度 Spindle taper |
|
BT50 |
BT50 |
|
主轴转速 Spindle speed |
rpm |
6000 |
皮带头6000/齿轮头4500 Belt head 6000/ gear head 4500 |
|
主轴档数 Spindle number |
|
1 |
皮带头1/齿轮头2 Belt head 1/ gear head 2 |
|
主轴冷却/润滑方式 Spindle cooling / lubrication mode |
油冷/油脂润滑 Oil / grease lubrication |
C04PT |
C04PT |
|
油压箱/齿轮头 Oil tank / gear head |
|
|
齿轮头SHC-027X(60L) Gear head SHC-027X(60L) |
|
进给Feed |
|||
|
切削进给 Cutting feed |
mm/min |
1-10000 |
1-10000 |
|
快速进给 Rapid feed |
m/min |
15/15/15 |
15/15/15 |
|
进给量 Minimum feed |
mm |
≥0.001 |
≥0.001 |
|
马达 Motor |
|
||
|
主轴马达 Spindle motor |
kw |
15/18.5 |
皮带头18.5/22 齿轮头15/18.5 Belt head 18.5/22 Gear head 15/18.5 |
|
三轴马达X/Y/Z axis motor |
kw |
7/7/7 |
7/7/7 |
|
冷却泵浦 Coolant pump |
Kw |
1.64 |
1.64 |
|
水箱容量 Water tank capacity |
m3 |
0.62 |
0.38 |
|
刀库Tool |
|||
|
刀库种类 Type of tool |
|
门笠/圆盘 Armless/Arm type |
门笠/圆盘 Armless/Arm type |
|
刀库规格 Tool specification |
|
BT50 |
BT50 |
|
刀库容量 Tool storage capacity |
|
20/24 |
20/24 |
|
刀具直径x长度 Max tool diameter x Length |
|
Φ≤110x300 |
Φ≤110x300 |
|
安装需求 Installation requirements |
|||
|
电力容量 Power capacity |
KVA |
30 |
35 |
|
气压压力 Air pressure |
Kg/cm2 |
5-7 |
5-7 |
|
空气流量 Air flow |
l/min |
100 |
100 |
|
占地空间 Floor space |
mm |
4310x3100x3200 |
4900x3100x3350 |
|
净重 Net weight |
kg |
13000 |
16500 |
