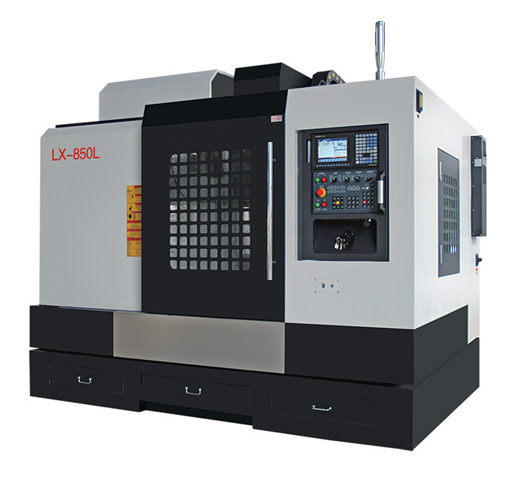

主要技术参数Main technical parameters |
|||
|
项目 Project |
单位 Unit |
LX-850 |
LX-850L |
|
工作台Table |
|||
|
工作台尺寸Table size (length x width) |
mm |
500x1000 |
500x1000 |
|
T型槽（宽x槽数） T- slot (width x slot number) |
mm |
18x5 |
18x5 |
|
载重 Maximum loading |
kg |
≤600 |
≤600 |
|
工作台面至地面距离 Distance from table surface to ground |
mm |
830 |
830 |
|
X轴行程Longitudinal travel |
mm |
800 |
800 |
|
Y轴行程 Lateral travel |
mm |
500 |
500 |
|
Z轴行程 Vertical travel |
mm |
500 |
500 |
|
主轴鼻端至工作台面距离 Distance from spindle nose to table surface |
mm |
120-670 |
120-670 |
|
主轴中心距至机柱滑道距离 Distance from spindle center to column slide |
mm |
550 |
550 |
|
主轴 Spindle |
|||
|
主轴锥度 Spindle taper |
|
BT40 |
BT40 |
|
主轴转速 Spindle speed |
rpm |
8000 |
8000 |
|
主轴档数 Spindle number |
|
1 |
1 |
|
主轴冷却/润滑方式 Spindle cooling / lubrication mode |
油冷/油脂润滑 Oil / grease lubrication |
C04PT |
C04PT |
|
进给Feed |
|||
|
切削进给 Cutting feed |
mm/min |
1-10000 |
1-10000 |
|
m/min |
15/15/15 |
15/15/15 |
|
|
进给量 Minimum feed |
mm |
≥0.001 |
≥0.001 |
|
马达 Motor |
|
||
|
主轴马达 Spindle motor |
kw |
7.5/11 |
7.5/11 |
|
三轴马达X/Y/Z axis motor |
kw |
2/2/2.5 |
2/2/2.5 |
|
冷却泵浦 Coolant pump |
Kw |
0.56 |
0.56 |
|
水箱容量 Water tank capacity |
m3 |
0.24 |
0.24 |
|
刀库Tool |
|||
|
刀库种类 Type of tool |
|
门笠/圆盘 Armless/Arm type |
门笠/圆盘 Armless/Arm type |
|
刀库规格 Tool specification |
|
BT40 |
BT40 |
|
刀库容量 Tool storage capacity |
|
16/20/24 |
16/20/24 |
|
刀具直径x长度 Max tool diameter x Length |
|
Φ≤90x300 |
Φ≤90x300 |
|
安装需求 Installation requirements |
|||
|
电力容量 Power capacity |
KVA |
15 |
15 |
|
气压压力 Air pressure |
kg/cm2 |
5-7 |
5-7 |
|
空气流量 Air flow |
l/min |
100 |
100 |
|
占地空间 Floor space |
mm |
2750x2200x2700 |
2750x2200x2700 |
|
净重 Net weight |
kg |
5200 |
5000 |
