主要技术参数Main technical parameters |
|
|
||
|
机械规格Mechanical specifications |
单位 Unit |

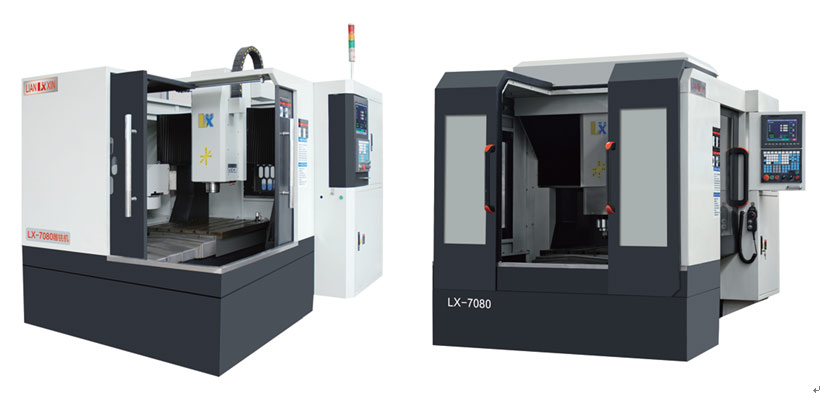

LX-6060 |
LX-7080 |
LX-8080 |
|
雕刻尺寸Maximum engraving size |
mm |
≤600x600x260 |
≤700x800x300 |
≤800x800x350 |
|
空行速度Maximum blank speed |
mm/mir |
≤15000 |
≤15000 |
≤15000 |
|
变频主轴电机Frequency spindle motor |
kw |
5.5 |
5.5(选配7.5) 5.5(Select 7.5) |
5.5(选配7.5) 5.5(Select 7.5) |
|
主轴转速Maximum spindle speed |
r/min |
≤24000 |
≤18000 |
≤18000 |
|
主轴适用刀径Spindle diameter |
mm |
Φ3-Φ16 |
Φ3-Φ19 |
Φ3-Φ19 |
|
额定功耗Rated power |
kw |
8 |
10 |
12 |
|
驱动电机Drive motor |
|
日本/台湾伺服电机选配 Japan / Taiwan servo motor selection |
日本/台湾伺服电机选配 Japan / Taiwan servo motor selection |
日本/台湾伺服电机选配 Japan / Taiwan servo motor selection |
|
数控系统CNC system |
|
新代系统选配 Syntec system selection |
新代系统选配 Syntec system selection |
新代系统选配 Syntec system selection |
|
工作台负重 Table bearing weight |
kg |
500 |
600 |
600 |
|
重量Weight |
T |
2.8 |
3.2 |
4.7 |
|
工作台尺寸 Table size (length x width) |
mm |
600x600 |
700x800 |
800x800 |
