主要技术参数Main technical parameters |
||
|
机械规格Mechanical specifications |
单位 Unit |

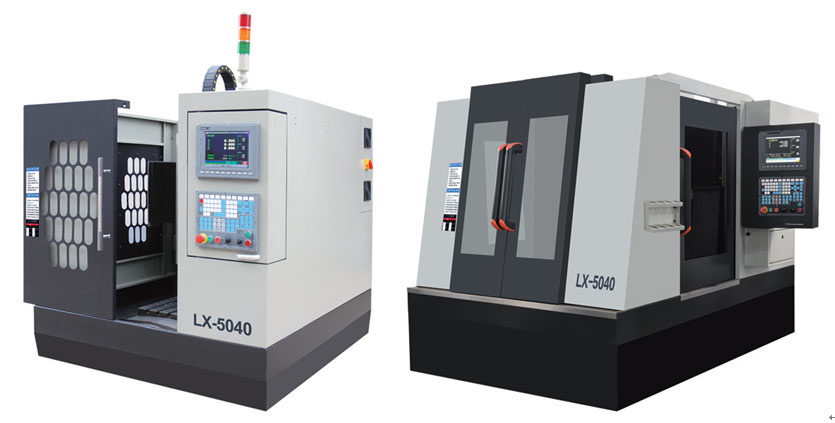

LX-5040 |
|
雕刻尺寸Maximum engraving size |
mm |
≤500x400x220 |
|
空行速度Maximum blank speed |
mm/mir |
≤15000 |
|
变频主轴电机Frequency spindle motor |
kw |
3 |
|
主轴转速Maximum spindle speed |
r/min |
≤4000 |
|
主轴适用刀径Spindle diameter |
mm |
Φ3-Φ16 |
|
额定功耗Rated power |
kw |
7 |
|
驱动电机Drive motor |
|
日本/台湾伺服电机选配 Japan / Taiwan servo motor selection |
|
数控系统CNC system |
|
Syntec system selection |
|
工作台负重Table bearing weight |
kg |
300 |
|
重量Weight |
T |
2.3 |
|
工作台尺寸Table size (length x width) |
mm |
500x400 |
