机械规格Mechanical specifications |
单位Unit |

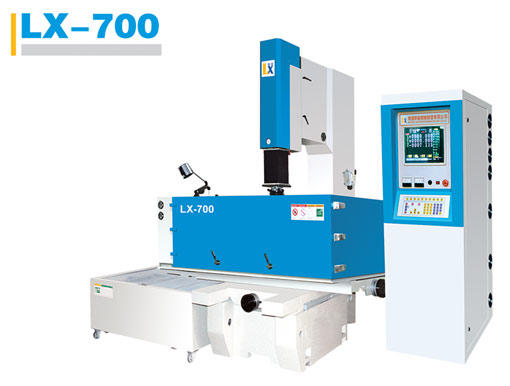

LX-700 |
|
|
工作台Table size(length x width) |
mm |
1200x650 |
|
|
工作槽（XxYxZ） Working slot (XxYxZ) |
mm |
1950x1050x650 |
|
|
装满油高度（从工作台算起） Maximum oil level (from table) |
mm |
≤470 |
|
|
左右行程Longitudinal travel |
mm |
700 |
|
|
前后行程Lateral travel |
mm |
600 |
|
|
Z轴行程Vertical travel |
主轴Spindle |
mm |
300 |
|
辅助行程 Auxiliary travel |
mm |
350 |
|
|
工作台到电极头平面距离 Maximum distance from worktable to electrode head |
mm |
≤950 |
|
|
电极重量 Maximum electrode weight |
KGS |
≤200 |
|
|
工作重量Maximum working weight |
KGS |
≤2000 |
|
|
机械重量Machine weight |
KGS |
3500 |
|
|
装箱尺寸Packing size |
mm |
2400x2010x2740 |
|
