单位Unit |

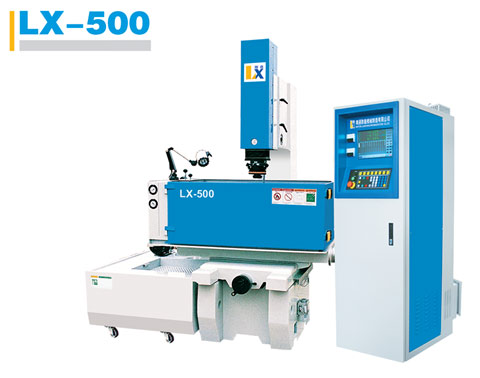

LX-500 |
||
|
工作台Table size(length x width) |
mm |
800x350 |
|
|
工作槽（XxYxZ） Working slot (XxYxZ) |
mm |
1240x750x500 |
|
|
装满油高度（从工作台算起） Maximum oil level (from table) |
mm |
≤320 |
|
|
左右行程Longitudinal travel |
mm |
500 |
|
|
前后行程Lateral travel |
mm |
400 |
|
|
Z轴行程Vertical travel |
主轴Spindle |
mm |
220 |
|
辅助行程 Auxiliary travel |
mm |
250 |
|
|
工作台到电极头平面距离 Maximum distance from worktable to electrode head |
mm |
≤540 |
|
|
电极重量 Maximum electrode weight |
KGS |
≤100 |
|
|
工作重量Maximum working weight |
KGS |
≤1200 |
|
|
机械重量Machine weight |
KGS |
2000 |
|
|
装箱尺寸Packing size |
mm |
2100x1470x2300 |
|
