机械规格 Mechanical specifications |
单位Unit |

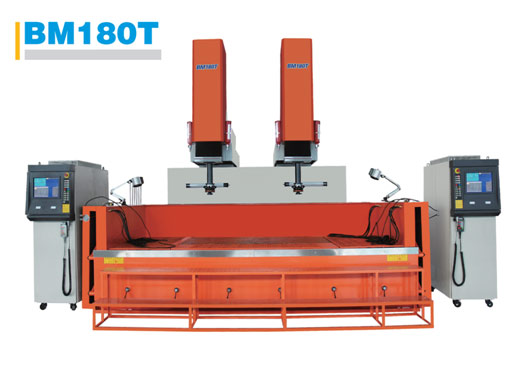

BM180T |
||
|
工作台尺寸（长x宽） Table size (length x width) |
mm |
2000x1000 |
||
|
坐标轴行程 Axis travel |
X轴X axis |
mm |
1800 |
|
|
Y轴Y axis |
mm |
800 |
||
|
Z轴Z axis |
mm |
600 |
||
|
加工液槽内部尺寸 The internal dimensions of processing tank |
mm |
3500x1800x650 |
||
|
承重电极重量Maximum electrode weight |
kg |
≤200 |
||
|
工作台承重量Table bearing weight |
kg |
8000 |
||
|
电极板至工作台面距离Distance from electrode plate to working table |
最小 Minimum |
mm |
600 |
|
|
最大 Maximum |
mm |
1200 |
||
|
总输入功率Total input power |
KVA |
20(10+10) |
||
|
输入电源Input power |
V |
380 |
||
|
加工电流Maximum machining current |
A |
≤50 |
||
|
控制轴数The number of control axis |
|
三轴三联动 Three axis three linkage |
||
